ASM SIPLACE HS-60
ASM SIPLACE HS-60 - Image 2

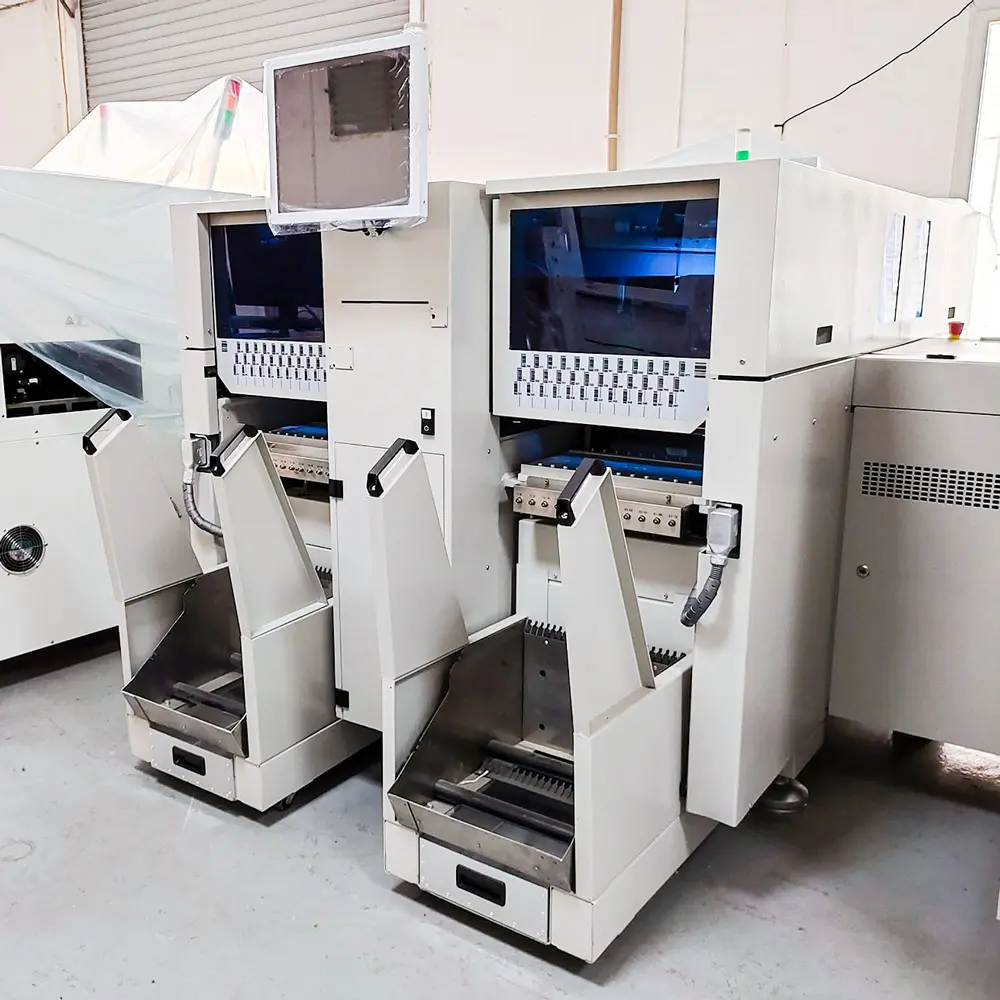

ASM SIPLACE HS-60

Description

● The ASM SIPLACE HF-3 is a flexible high-speed SMT pick-and-place machine engineered for efficient and reliable component placement across PCB assembly lines. It supports placing components ranging from tiny 0201 (0.6 × 0.3 mm²) up to large packages (e.g. 85 × 85 mm², or up to 200 × 125 mm² with some restrictions), making it suitable for both small passive parts and larger ICs.

● With three gantries and flexible placement head configurations (e.g. Twin Head, Collect-and-Place heads C&P6, C&P12), the HF-3 can reach placement rates up to approximately 40,400 components per hour under benchmark conditions — enabling high throughput production.

● Its dual-conveyor capability (single or dual PCB transport) adds production flexibility and helps reduce downtime by allowing simultaneous or alternating PCB processing — helping maximize line utilization.

Brand: ASM (ASMPT / Siemens SIPLACE)
Model: SIPLACE HF-3

Category:

Outstanding Products Make You Stand Out

Each SMT pick and place machine is guaranteed to boost your PCB assembly business thanks to the number of qualities listed below.

  • ⚡Precise Placement: The accuracy of our SMT pick and place machines can achieve a level of precision that surpasses any human pick and place handling.
  • 🔥High Flexibility: All SMT pick and place machines are easy to program for various PCB boards with different dimensions, production requirements, and specifications.
  • 🧱Ease of Use: With the user-friendly aspect of our SMT pick and place machines, they can be incorporated into your production floor with the minimum training requirement.
  • 🧩Low Maintenance: The cutting-edge technology of our SMT pick and place machines requires minimal maintenance, helping you reduce cost while increasing productivity.

🔶 ASM SIPLACE HS-60 Pick and Place Machine Specifications

Type of placement head 12-Nozzle Collect & Place Head
Number of gantries 4
Benchmark placement rate a 60,000 cph
Component Range 0.6 x 0.3 mm2 (0201) to 18.7 x 18.7 mm2
Max. placement accuracy (at 4 sigma) a 80/75 μm
PCB dimensions (L x W)
Single conveyor 50 x 50 mm2 to 368 x 216 mm2 / 2″ x 2″ to 14.5″ x 8.5″
(optional up to 610 x 460 mm2 b)
Dual conveyor 50 x 50 mm2 to 368 x 460 mm2 / 2″ x 2″ to 14.5″ x 18″
(optional up to 610 x 216 mm2 b)
Feeding capacity 144 tracks, 8 mm tape
Component table Quick changeover table with integrated wheels, reel holder and scrap bin
Types of Feeder modules Tapes, Bulk Cases, Surf Tape feeders, application-specific OEM feeders
Operating system Microsoft Windows / RMOS
Power 4KW
Compr. air requirements 6.5 – 10 bar, 950 Nl/min, tube 3/4”
Vacuum pump (Option) 6 – 10 bar, 400 Nl/min, tube 3/4”
