Datapaq DP Series Reflow Tracker

Description

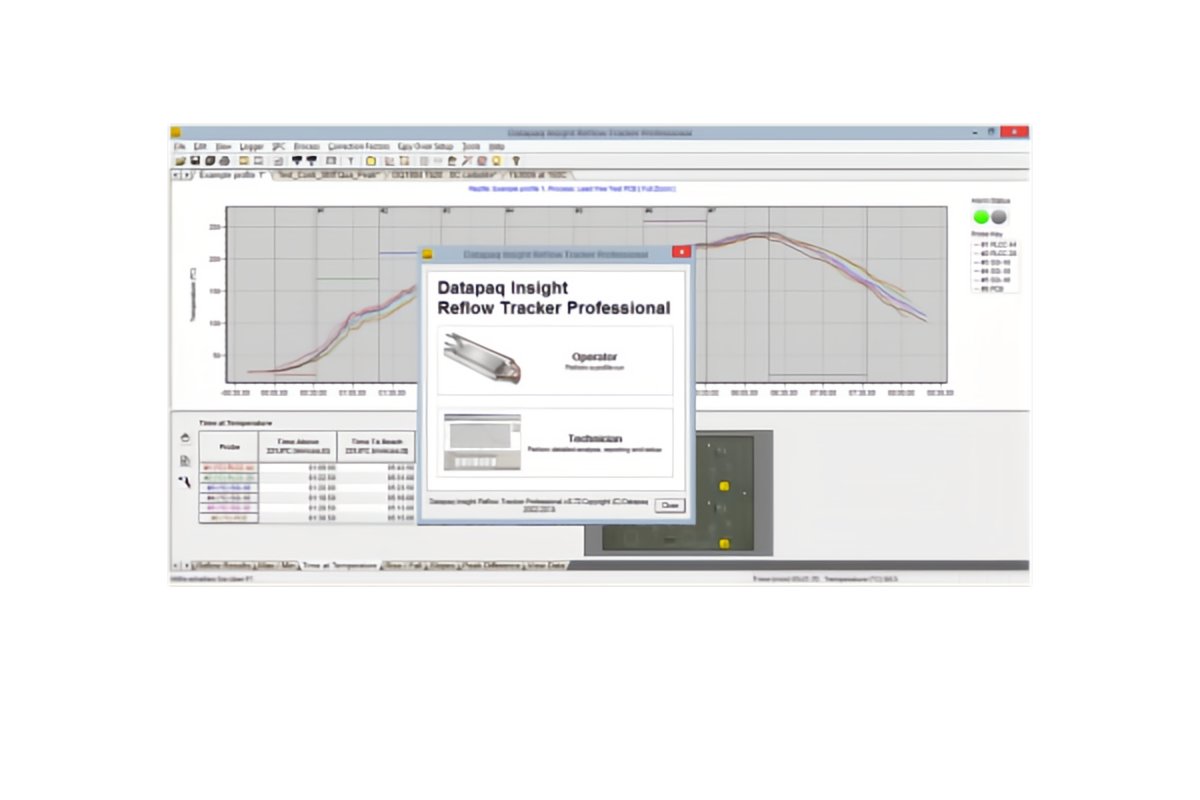

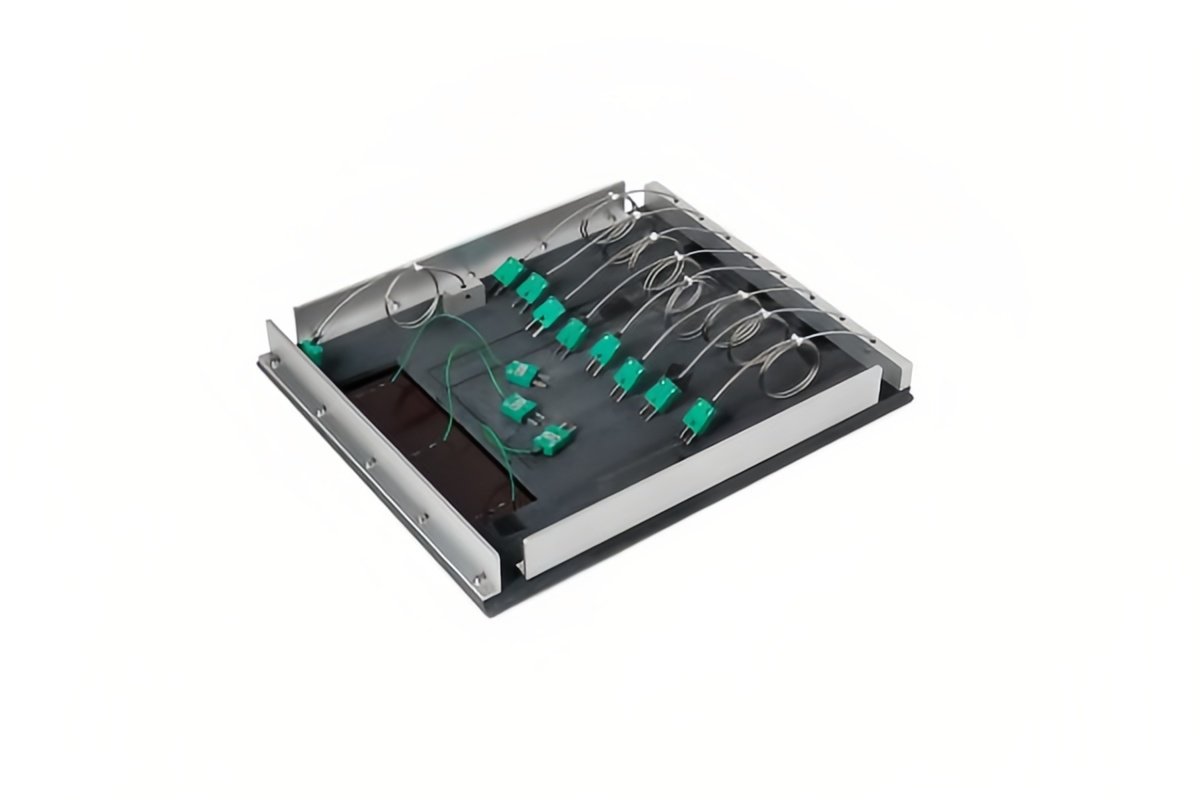

The Datapaq® Reflow Tracker® temperature profiling system is comprised of specifically designed thermocouples, data loggers, protective thermal barriers and Insight software, to help you optimize process and product quality.

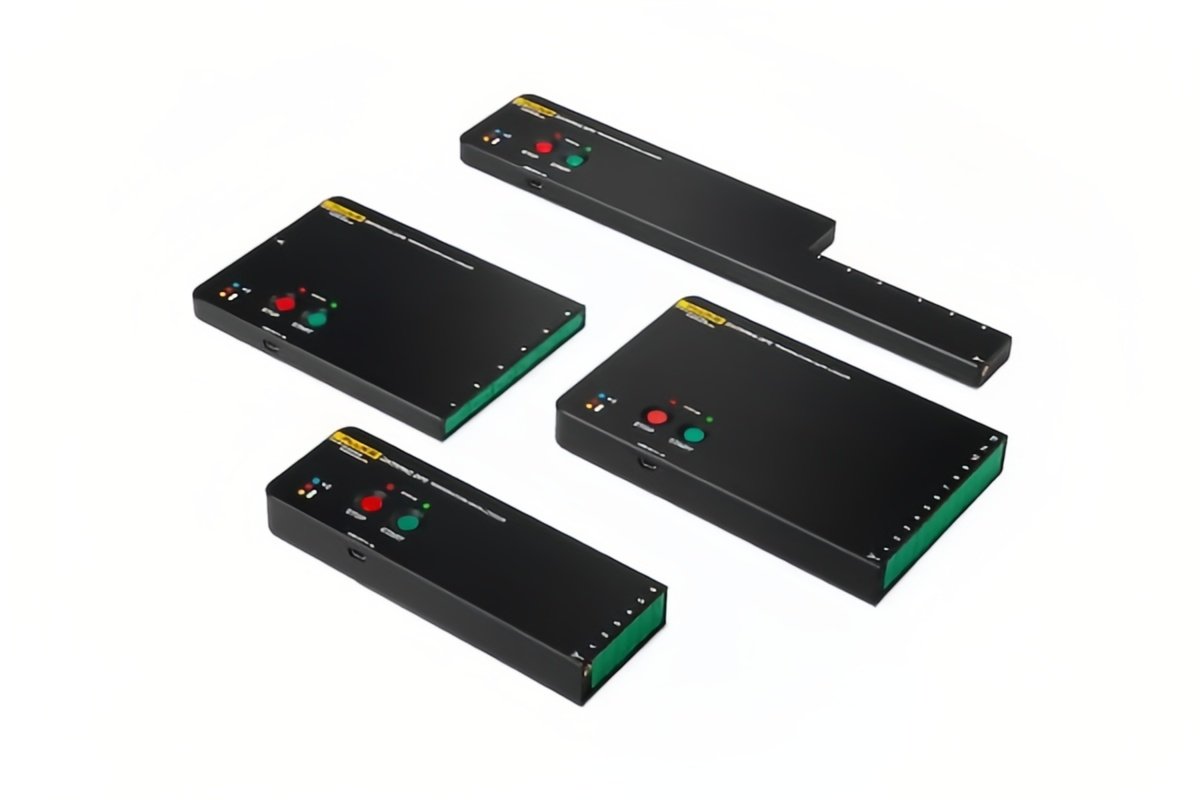

Datapaq DP5 Datalogger

The Datapaq DP5 is rugged and reliable temperature data logger utilizing the latest electronic technology to ensure the optimal size/performance balance. It is housed in a machined-from-solid aluminum case to ensure longest service life and lowest cost of ownership.

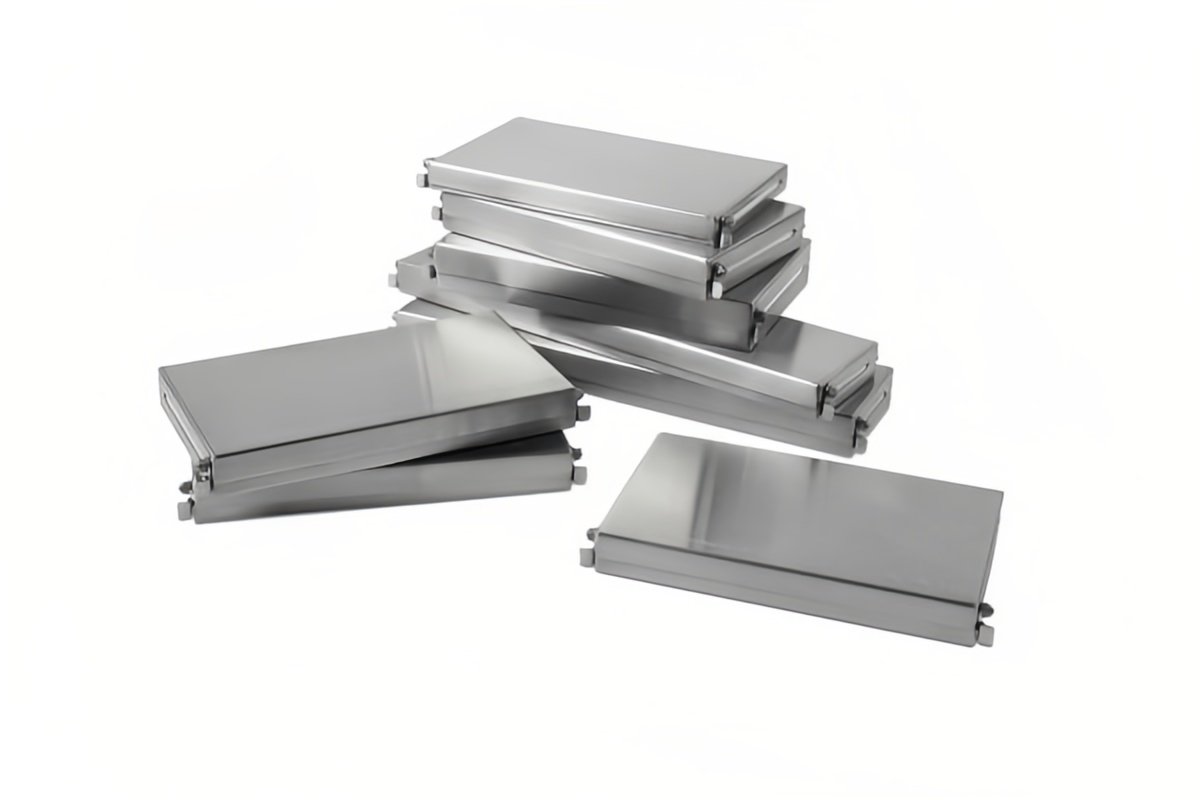

Thermal Barriers

Employing the same insulation technology as that used in an aircraft’s ‘black box’, Datapaq thermal barriers are housed in a rugged stainless steel casing, designed to last for many years. Rugged, yet lightweight, these barriers withstand process temperatures run after run. Our most popular barrier weighs only 0.7 kg (1.6 lb) and can survive temperatures of 300 ºC (572 ºF) for over eight minutes.

  • Brand: Datapaq
  • Model: DP5600/DP5661/DP5662/DP5612/DP5622
Category:

Outstanding Products Make You Stand Out

Each SMT pick and place machine is guaranteed to boost your PCB assembly business thanks to the number of qualities listed below.

  • ⚡Precise Placement: The accuracy of our SMT pick and place machines can achieve a level of precision that surpasses any human pick and place handling.
  • 🔥High Flexibility: All SMT pick and place machines are easy to program for various PCB boards with different dimensions, production requirements, and specifications.
  • 🧱Ease of Use: With the user-friendly aspect of our SMT pick and place machines, they can be incorporated into your production floor with the minimum training requirement.
  • 🧩Low Maintenance: The cutting-edge technology of our SMT pick and place machines requires minimal maintenance, helping you reduce cost while increasing productivity.

🔶 Datapaq DP Series Reflow Tracker Specifications

Model Number
DP5660
DP5661
DP5662
DP5612
DP5622
Dimensions
11.7 x 106 x 150 mm
0.46 x 4.1 x 5.9”
11.7 x 60 x 301 mm
0.46 x 2.3 x 11.8”
20 x 57 x 165 mm
0.7 x 2.2 x 6.4”
20 x 106 x 165 mm
0.7 x 4.1 x 6.4”
20 x 60 x 237 mm
0.7 x 2.3 x 9.3”
Channels
6 or 12
Temperature range
-100 to 1370°C (-148 to 2498°F)
Dependent on thermocouple type (Type K shown)
Connectivity
USB or Bluetooth*
Memory capacity
50,000 data points
Start/stop triggers
Manual, Rising/falling temperature
Sampling interval
0.5 sec – 10 mins with no telemetry
Accuracy
± 0.5 °C (0.9 °F) – Type K
Resolution
± 0.1°C (0.18 °F)
Thermocouple type
Type K (J, N, T, R, S, B are available)
Multiple run capability
Up to 10 profile runs before returning to PC
