🔶 Datapaq DP Series Reflow Tracker Specifications

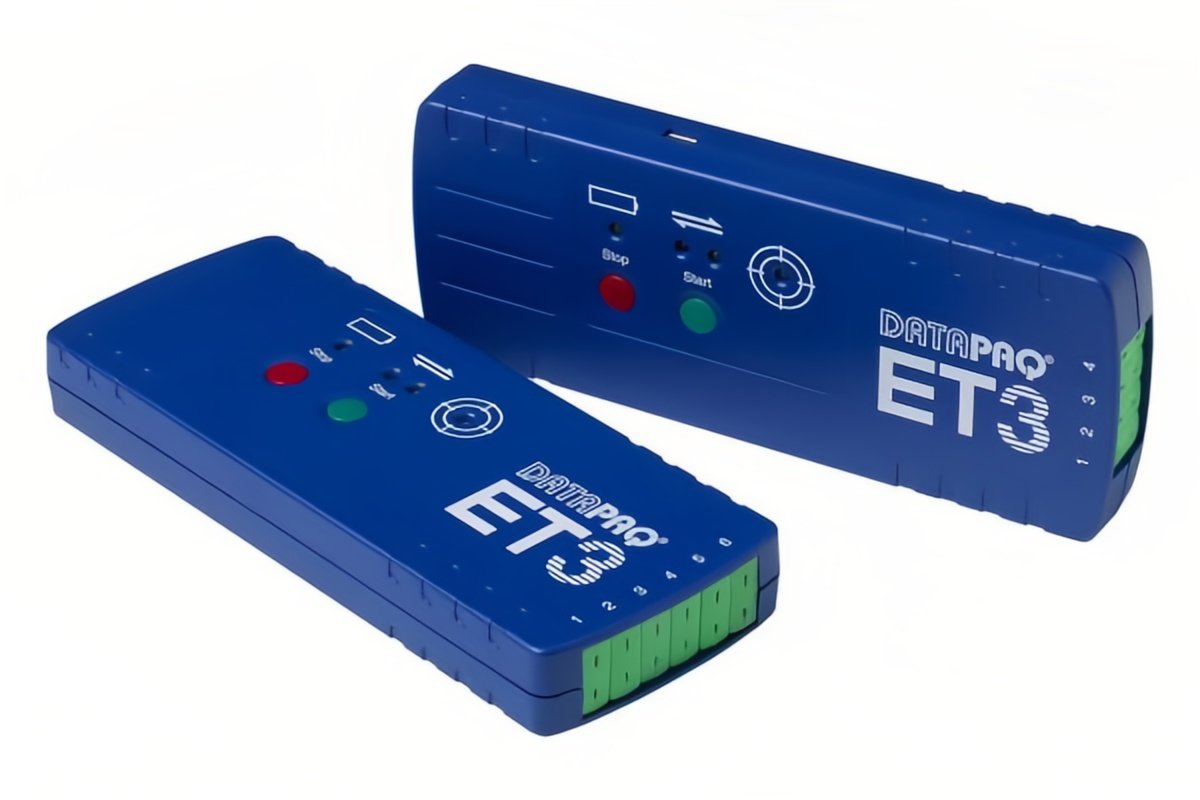

ET3 Data Logger Specifications
| Model | ET4043 | ET6063 |
|---|---|---|
| Case | High temperature molded polycarbonate | |
| Channels | 4 | 6 |
| Weight | 196 g (0.43 lbs) | 200 g (0.44 lbs) |
| Dimensions | 170 × 67 × 20.5 mm (6.7 × 2.6 × 0.8 in) | |
| Measurement temperature range | -150 to 500 °C (-238 to 932 °F) | |
| Logger operating range | 0 to 85 °C (32 to 185 °F ) with auto shut-down | |
| Memory capacity | 18.000 readings per channel per run Non-volatile hot data protection. |
|
| Sampling interval | 0.5 sec – 60 mins | |
| Logger accuracy | ± 0.5 °C (0.9 °F) | |
| Resolution | ± 0.1°C (0.18 °F) | |
| Thermocouple type | Type K (mini-plug) | |
| Multiple run capability | Max 3 runs separately stored in logger | |
| Start trigger | Auto start / start button / temperature trigger | |
| Battery type | Replaceable 9V alkaline | |
| Battery life | 50 × 1 hour oven runs – 5 s, 6 channels at 70 °C (158 °F) | |
| Additional features | SmartPaq function*, intelligent power management, auto detection by Insight software, CJC (Cold Junction Compensation), hot data protection, non-volatile memory, real-time data, onboard calibration | |
Standard EasyTrack3 Thermal Barriers
| Model Number | TB0253 | TB0263 |
|---|---|---|
| Construction | Aluminum | |
| Dimensions | 265 × 185 × 110 mm (10.4 × 7.3 × 4.3 in) |
297 × 187 × 125 mm (11.7 × 7.4 × 4.9 in) |
| Weight incl. barrier and heat sink | 3 kg (6.5 lbs) | 3.7 kg (8.2 lbs) |
| Thermal duration* @100°C (212°F) @150°C (300°F) @200°C (400°F) @250°C (480°F) @300°C (570°F) @400°C (750°F) |
(in min.) 330 180 120 75 40 – |
(in min.) 540 270 180 110 60 – |
| Heatsink | TB9550 – Phase change temperature 58°C (135°F) | |
Low-height and high-temp EasyTrack3 Thermal Barriers
| Model Number | TB2037 | TB5000-HT |
|---|---|---|
| Construction | Stainless steel | |
| Dimensions | 229 × 90 × 31 mm (9.0 × 3.5 × 1.2 in) |
292 × 190 × 130 mm (11.5 × 7.5 × 5.1 in) |
| Weight incl. barrier and heat sink | 0.55 kg (1.2 lbs) | 6.2 kg (13.7 lbs) |
| Thermal duration* @100°C (212°F) @150°C (300°F) @200°C (400°F) @250°C (480°F) @300°C (570°F) @400°C (750°F) |
(in min.) 30 18 13 9 – – |
(in min.) 870 390 270 210 180 90 |
| Heatsink | NA | TB1001x2 Phase change temperature 58°C (135°F) |
