DEK Horizon 03iX

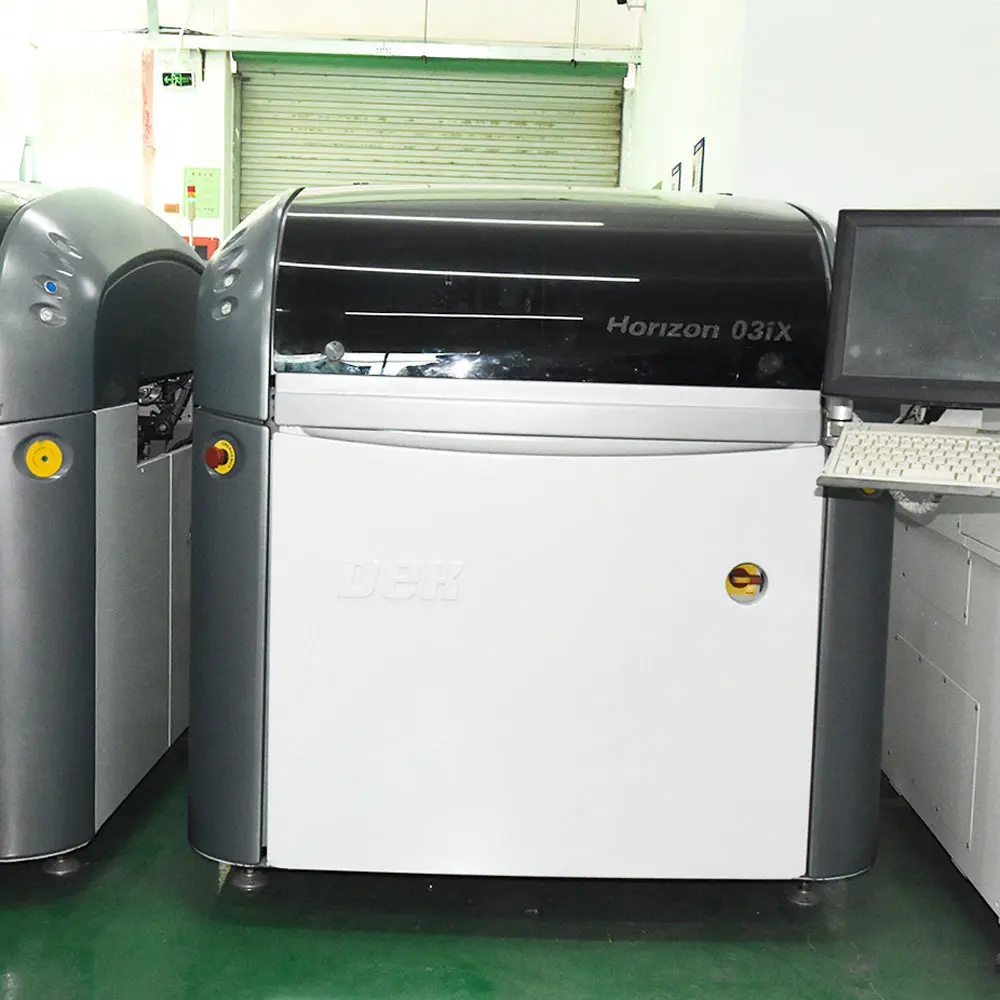

DEK Horizon 03iX - Image 2

DEK Horizon 03iX

Description

● The DEK Horizon 03iX is a high-precision automatic SMT solder paste printer designed to deliver exceptional stencil printing accuracy, consistent paste deposition, and reliable performance for modern PCB assembly lines.

● Engineered with DEK’s advanced alignment technology, optimized print pressure control, and stable frame structure, the 03iX provides outstanding repeatability across fine-pitch, micro-BGA, and high-density SMT applications.

● With an intelligent vision alignment system, closed-loop process control, and flexible print parameter adjustments, the Horizon 03iX ensures optimized solder paste volumes and uniform coverage—critical for achieving strong solder joints and reducing downstream defects.

● Its modular design, fast product changeover capability, and full MES connectivity make it ideal for medium to high-volume electronics manufacturing environments seeking accuracy, speed, and long-term production stability.

  • Brand: DEK
  • Model: Horizon 03iX
Category:

Outstanding Products Make You Stand Out

Each SMT pick and place machine is guaranteed to boost your PCB assembly business thanks to the number of qualities listed below.

  • ⚡Precise Placement: The accuracy of our SMT pick and place machines can achieve a level of precision that surpasses any human pick and place handling.
  • 🔥High Flexibility: All SMT pick and place machines are easy to program for various PCB boards with different dimensions, production requirements, and specifications.
  • 🧱Ease of Use: With the user-friendly aspect of our SMT pick and place machines, they can be incorporated into your production floor with the minimum training requirement.
  • 🧩Low Maintenance: The cutting-edge technology of our SMT pick and place machines requires minimal maintenance, helping you reduce cost while increasing productivity.

🔶 DEK Horizon 03iX Solder Paste Printer Specifications



Machine Name DEK Horizon 03iX automatic smt solder paste screen printer
Operating System Win XP+09sp13 or up
PCB support Tooling Magnetic tooling pins
Camera type Hawkeye 750 or Hawkeye 1700 (optional) 198040 198043 hawkeye
Board foil clamp size 250mm—520mm ( depends on your requirement )
Screen cleaner Under Blue screen cleaner
Max Print Area 510x508mm
Transport System Type Front Rail Fixed and board clamp
Transport System Direction Left to right, Right to left, Left to left, Right to right (System setup)
PCB thickness 0.2-6mm
PCB Weight 0-1kg
Screen Frame Size 736x736mm
Print Modes Standard Print head
Machine Alignment Capability 2.0@±25microns
Other function (optional) Automatic Fiducial Setup
Fast Print Speed
Small Fiducial
Net working
On board, reported via operator interface (QC-CALC)
2D Inspection
Blue Under Screen Cleaner, fully programmable with wet/dry/vacuum wipe with external solvent tank, Cyclone high speed cleaner, fully programmable with wet/dry/vacuum wipe with external solvent tank
Vacuum tooling capability, Vacuum tooling sensor, Vacuum cups, Grid-Lok Tooling
Voltage AC 220V 50-60Hz
Machine weight 700Kg
Machine Size L1400xD1800xH1500mm
