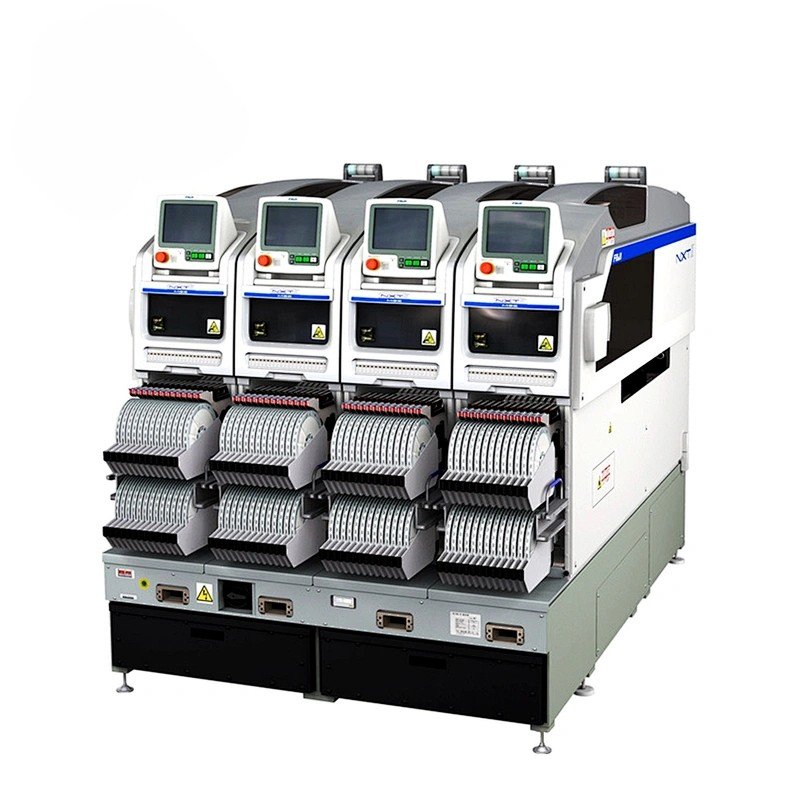

FUJI NXT M3III High Speed Machine
,

FUJI NXT M3III High Speed Machine

Description

● The FUJI NXT M3III is a high-speed modular SMT machine engineered to deliver exceptional placement accuracy, rapid throughput, and superior flexibility for modern high-mix and high-volume PCB assembly.

● Equipped with FUJI’s advanced servo control, lightweight placement heads, and intelligent feeder technology, the NXT M3III ensures stable, precise component mounting across a wide range of package types—from 0201 chips to fine-pitch ICs and complex modules.

● Its scalable modular platform allows manufacturers to configure production capacity based on demand, while optimized motion control and enhanced vision systems ensure repeatable placement quality at high speeds.

● With seamless integration into smart SMT lines, automatic calibration, and powerful line-management software, the NXT M3III provides consistent performance, reduced downtime, and efficiency improvements for world-class electronics manufacturing.

  • Brand: FUJI
  • Model: NXT M3III
Categories: ,

Outstanding Products Make You Stand Out

Each SMT pick and place machine is guaranteed to boost your PCB assembly business thanks to the number of qualities listed below.

  • ⚡Precise Placement: The accuracy of our SMT pick and place machines can achieve a level of precision that surpasses any human pick and place handling.
  • 🔥High Flexibility: All SMT pick and place machines are easy to program for various PCB boards with different dimensions, production requirements, and specifications.
  • 🧱Ease of Use: With the user-friendly aspect of our SMT pick and place machines, they can be incorporated into your production floor with the minimum training requirement.
  • 🧩Low Maintenance: The cutting-edge technology of our SMT pick and place machines requires minimal maintenance, helping you reduce cost while increasing productivity.

🔶 FUJI NXT M3III High Speed Machine Specifications



Machine Model M3 III M6 III
Applicable PCB size (LxW) 48 x 48 mm to 250 x 510 mm (double conveyor)* 48 x 48 mm to 534 x 510 mm (double conveyor)*
48 x 48 mm to 250 x 610 mm (single conveyor) 48 x 48 mm to 534 x 610 mm (single conveyor)
*Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode.
Part types Up to 20 types of parts (calculated using 8 mm tape) Up to 45 types of parts (calculated using 8 mm tape)
PCB loading time For double conveyor: 0 sec (continuous operation) For double conveyor: 0 sec (continuous operation)
For single conveyor: 2.5 sec (transport between M3 III modules), 3.4 sec (transport between M6 III modules) For single conveyor: 2.5 sec (transport between M3 III modules), 3.4 sec (transport between M6 III modules)
Placement accuracy H24G +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode) (3sigma) cpk≥1.00 H24G +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode) (3sigma) cpk≥1.00
(Fiducial mark standard) V12/H12HS +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00 V12/H12HS +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00
Placement Head Accuracy H04S/H04SF +/-0.040 mm (3sigma) cpk≥1.00 H08M/H04S/H04SF +/-0.040 mm (3sigma) cpk≥1.00
H08/H04 +/-0.050 mm (3sigma) cpk≥1.00 H08/H04/OF +/-0.050 mm (3sigma) cpk≥1.00
H02/H01/G04 +/-0.030 mm (3sigma) cpk≥1.00 H02/H01/G04 +/-0.030 mm (3sigma) cpk≥1.00
H02F/G04F +/-0.025 mm (3sigma) cpk≥1.00 H02F/G04F +/-0.025 mm (3sigma) cpk≥1.00
GL +/-0.100 mm (3sigma) cpk≥1.00 GL +/-0.100 mm (3sigma) cpk≥1.00
* The placing accuracy is obtained from tests conducted by Fuji.
Productivity H24G 37,500 cph (Productivity priority mode) / 35,000 cph (Standard mode) H24G 37,500 cph (Productivity priority mode) / 35,000 cph (Standard mode)
V12 26,000 cph V12 26,000 cph
H12HS 24,500 cph H12HS 24,500 cph
H08 11,500 cph H08M 13,000 cph
H04 6,500 cph H08 11,500 cph
H04S 9,500 cph H04 6,500 cph
H04SF 10,500 cph H04S 9,500 cph
H02 5,500 cph H04SF 10,500 cph
H02F 6,700 cph H02 5,500 cph
H01 4,200 cph H02F 6,700 cph
G04 7,500 cph H01 4,200 cph
G04F 7,500 cph G04 7,500 cph
GL 16,363 dph (0.22 sec/dot) G04F 7,500 cph
* The throughput above is based on tests conducted at Fuji. OF 3,000 cph
GL 16,363 dph (0.22 sec/dot)
Supported parts H24G 0201 to 5 x 5 mm Height up to 2.0 mm
V12/H12HS 0402 to 7.5 x 7.5 mm Height up to 3.0 mm
H08M 0603 to 45 x 45 mm Height up to 13.0 mm
H08 0402 to 12 x 12 mm Height up to 6.5 mm
H04 1608 to 38 x 38 mm Height up to 9.5 mm
H04S/H04SF 1608 to 38 x 38 mm Height up to 6.5 mm
H02/H02F/H01/OF 1608 to 74 x 74 mm (32 x 180 mm) Height up to 25.4 mm
G04/G04F 0402 to 15 x 15 mm Height up to 6.5 mm
Module width 320 mm 645 mm
Machine dimensions L: 1295 mm (M3 III x 4, M6 III x 2) / 645 mm (M3 III x 2, M6 III)
W: 1900.2 mm, H: 1476 mm
DynaHead(DX)
Nozzle quantity 12 4 1
Throughput(cph) 25,000 11,000 4,700
Parts presence function ON: 24,000
Part size (mm) 0402 (01005″) to 7.5 x 7.5 1608 (0603″) 1608 (0603″)
Height: to 15 x 15 to 74 x 74 (32 x 100)
Up to 3.0 mm Height: Height:
Up to 6.5 mm Up to 25.4 mm
Placing accuracy
(Fiducial mark based referencing)		 +/-0.038 (+/-0.050) mm (3σ) cpk≥1.00*
*+/-0.038 mm obtained with rectangular chip placement (high accuracy tuning) under optimal conditions at Fuji.		 +/-0.040 mm (3σ) cpk≥1.00 +/-0.030 mm (3σ) cpk≥1.00
Parts supply system
lntelligent feeders Support for 4, 8, 12, 16, 24, 32, 44, 56, 72, 88, and 104 mm wide tape
Stick feeders 4 ≤ Part width ≤ 15 mm (6 ≤ Stick width ≤ 18 mm), 15 ≤ Part width ≤ 32 mm (18 ≤ Stick width ≤ 36 mm)
Trays Applicable tray size: 135.9 x 322.6 mm (JEDEC standard) (Tray Unit-M)，276 x 330 mm (Tray Unit- LT), 143 x 330 mm (Tray Unit-LTC)
Options
Tray feeders, PCU II (Pallet Change Unit), MCU (Module change unit), Engineering panel stand, FUJI CAMX Adapter, Nexim Software
*Contact Fuji or sales agents for specific operating conditions and detailed specifications.
