Heller 1913MKIII N2

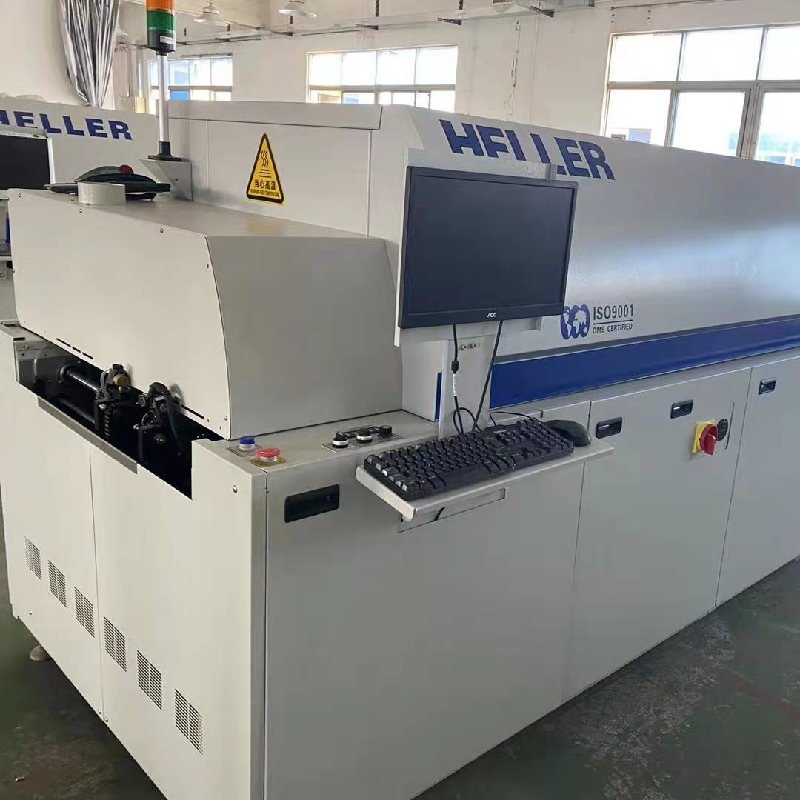

Heller 1913MKIII N2 - Image 2

Heller 1913MKIII N2

Description

● The Heller 1913MKIII is a high-reliability lead-free nitrogen reflow oven engineered for precision soldering performance in advanced SMT production environments.

● By utilizing controlled nitrogen atmosphere technology, the 1913MKIII significantly reduces oxidation, enhances wetting consistency, and improves overall solder joint integrity—making it ideal for high-density, fine-pitch, and mission-critical PCB assemblies.

● Equipped with 13 heating zones and a stabilized cooling section, the system ensures uniform thermal distribution and repeatable reflow profiles across complex multilayer boards.

● The 1913MKIII incorporates Heller’s efficient flux management, energy-saving heating modules, and long-life convection system for low maintenance and durable operation.

● With full MES connectivity, advanced profile control, and stable nitrogen flow regulation, it delivers superior process stability for high-volume and high-precision SMT manufacturing.

  • Brand: Heller
  • Model: 1913MKIII N2
Category:

Outstanding Products Make You Stand Out

Each SMT pick and place machine is guaranteed to boost your PCB assembly business thanks to the number of qualities listed below.

  • ⚡Precise Placement: The accuracy of our SMT pick and place machines can achieve a level of precision that surpasses any human pick and place handling.
  • 🔥High Flexibility: All SMT pick and place machines are easy to program for various PCB boards with different dimensions, production requirements, and specifications.
  • 🧱Ease of Use: With the user-friendly aspect of our SMT pick and place machines, they can be incorporated into your production floor with the minimum training requirement.
  • 🧩Low Maintenance: The cutting-edge technology of our SMT pick and place machines requires minimal maintenance, helping you reduce cost while increasing productivity.

🔶 Heller 1913MKIII Lead-Free Nitrogen Reflow Oven specifications

Power Input (3 Phase) Standard 480 volts
Breaker Size 100 amps @ 480v
kW 12 – 19 Continuous
Typical Run Current 30 – 35 amps @ 480v
Optional Power Inputs Available 208/240/380/400/415 VAC
Frequency 50/60 Hz
Sequential Zone Turn On S
Dimensions
Overall Oven Dimensions 589cm x 137cm x 160cm
Typical Net Weight 6380 lbs. (2900 kg)
Typical Shipping Weight 7475 lbs. (3680 kg)
Computer Control
AMD or Intel Based Computer S
Flat Screen Monitor w/Mount S
Windows Operating System Windows Vista/7
Auto Start Software S
Data Logging S
Password Protection S
LAN Networking O
Mesh Belt Conveyor
Height From Floor 35.5” + 2.0” (90 cm + 5 cm)
Maximum PCB Width 10” (25 cm) 15” (38 cm) 18”(46 cm) 20” (50 cm) 22~ 24” (56~61 cm)*
Space Required Between PCB’s 0.0” (0.0 cm)
Conveyor Length On-Load 6” (15 cm) *
Conveyor Length Off-Load 6” (15 cm) *
Heated Tunnel Length 135” (343 cm)
Process Clearance Above Mesh Belt 2.3” (5.8 cm)
Mesh Belt Pitch 0.5” (1.27 cm)
Maximum Conveyor Speed 74”/Min (188 cm/min.)
Conveyor Direction Left to Right S
Conveyor Direction Right to Left O
Notes: S = Standard, O = Optional.
* A 12” (30 cm) Conveyor extension is an available option.
A continuous program of product improvement may result in changes to specification and performance.
The right is reserved to institute these improvements without notice or liability.
