Outstanding Products Make You Stand Out
Each SMT pick and place machine is guaranteed to boost your PCB assembly business thanks to the number of qualities listed below.
- ⚡Precise Placement: The accuracy of our SMT pick and place machines can achieve a level of precision that surpasses any human pick and place handling.
- 🔥High Flexibility: All SMT pick and place machines are easy to program for various PCB boards with different dimensions, production requirements, and specifications.
- 🧱Ease of Use: With the user-friendly aspect of our SMT pick and place machines, they can be incorporated into your production floor with the minimum training requirement.
- 🧩Low Maintenance: The cutting-edge technology of our SMT pick and place machines requires minimal maintenance, helping you reduce cost while increasing productivity.

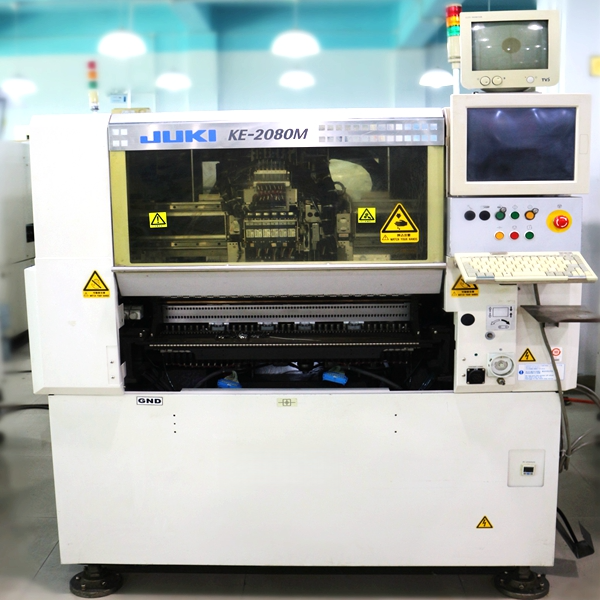

🔶 JUKI 2080 Specifications
| Model | JUKI 2080 | ||
| Board size | M size (330×250mm) | ○ | |
| L size (410×360mm) | ○ | ||
| L-Wide size (510×360mm) (option) | ○ | ||
| E size (510×460mm)*1 | ○ | ||
| Component size | Laser recognition | 0402 (01005)～33.5mm | |
| Vision recognition | Standard camera | 3mm～74mm or 50×150mm | |
| High-resolution camera (option) | 1.0×0.5mm*3～48mm or 24×72mm | ||
| Placement speed | Chip | Optimum | 0.178Sec./chip (20,200CPH) |
| IPC9850 | 16,700CPH | ||
| IC*4 | 1,850CPH | ||
| 4,860CPH*5 | |||
| Placement accuracy | Laser recognition | ±0.05mm（Cpk≧1） | |
| Vision recognition | ±0.03mm (±0.04mm when using MNVC) | ||
| Feeder inputs | Max. 80 on 8mm T/F*6 | ||
