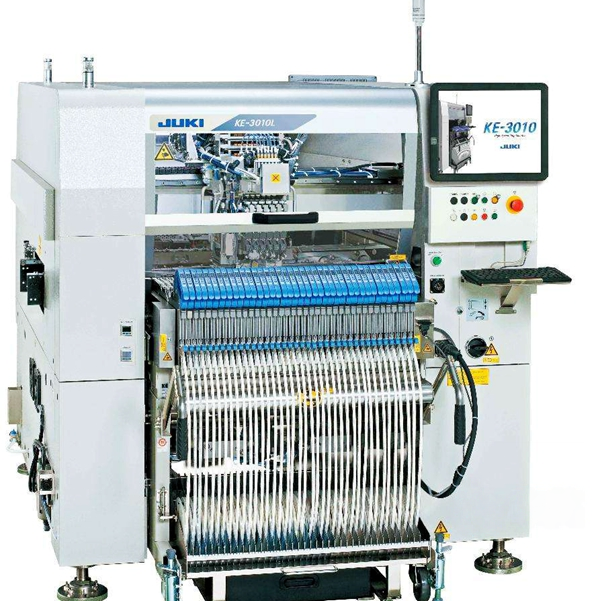

🔶 JUKI KE-3010 Specifications
| Specification | Details |
|---|---|
| Operating System | Windows XP (Supports Chinese, Japanese, and English languages) |
| PCB Size | M Size: 330 × 250 mm L Size: 410 × 360 mm L-Wide Size: 510 × 360 mm (optional) XL Size: 610 × 460 mmLong PCB (L Size × 2): 800 × 360 mm Long PCB (L-Wide Size × 2): 1,010 × 360 mm Long PCB (XL Size × 2): 1,210 × 560 mm |
| Component Height | 6 mm / 12 mm |
| Component Size | Laser Recognition: 0.4 × 0.2 mm (01005 inch) to 33.5 mm square Vision Recognition (MNVC optional): Standard Camera: 3 mm to 33.5 mm square High-Resolution Camera: 1.0 × 0.5 mm to 20 mm square |
| Placement Speed | Best Condition: 0.153 sec/chip (23,500 CPH) MNVC IC (Best Condition, optional): 9,000 CPH |
| Placement Accuracy | Laser Recognition: ±0.05 mm (±3σ) Vision Recognition: ±0.04 mm (±3σ) |
| Supported Component Types | Up to 160 types (8 mm tape equivalent, using electric dual-track feeder) |
| Machine Dimensions (W × D × H) | For M PCB: 1,500 × 1,580 × 1,500 mm For L PCB: 1,500 × 1,690 × 1,500 mm For L-Wide PCB: 1,800 × 1,690 × 1,500 mm For XL PCB: 2,131 × 1,890 × 1,500 mm |
| Machine Weight | M PCB: approx. 1,850 kg L PCB: approx. 1,950 kg XL PCB: approx. 2,250 kg |
🔶 JUKI KE-3020 Specifications
| Specification | Details |
|---|---|
| PCB Size | M Size: 330 × 250 mm L Size: 410 × 360 mm L-Wide Size: 510 × 360 mm (optional) XL Size: 610 × 560 mmLong PCB (L Size × 2): 800 × 360 mm (optional) Long PCB (L-Wide Size × 2): 1,010 × 360 mm (optional) Long PCB (XL Size × 2): 1,210 × 560 mm (optional) |
| Component Height | 12 mm specification 20 mm specification 25 mm specification (XL PCB size) |
| Component Size | Laser Recognition: 0402 (01005 inch) chips to 33.5 mm square components Vision Recognition – Standard Camera: 3 mm to 74 mm square, or 50 × 150 mm components High-Resolution Camera: 1.0 × 0.5 mm to 48 mm square, or 24 × 72 mm components (optional) |
| Placement Speed | Chip Components (Best Condition): 20,900 CPH IPC9850: 17,100 CPH IC Components: 9,470 CPH* |
| Placement Accuracy | Laser Recognition: ±0.05 mm (Cpk ≥ 1) Vision Recognition: ±0.03 mm (MNVC ± 0.04 mm) |
| Component Types Supported | Up to 160 types (8 mm tape equivalent, using EF08HD electric dual-track feeder) |
| Notes | 1. L-Wide PCB size is optional. 2. Long PCB support is optional. 3. High-resolution camera is optional. 4. IC speed is based on mounting 36 QFPs (over 100 pins) or BGAs (over 256 balls) on an M-size PCB. 5. IC speed is calculated using MNVC with simultaneous nozzle pickup. (MNVC is standard on KE-3020V / KE-3020VR.) 6. Component type count calculated using EF08HD. |
