<h2>Outstanding Products Make You Stand Out</h2>
Each SMT pick and place machine is guaranteed to boost your PCB assembly business thanks to the number of qualities listed below.
<ul>
<li>⚡<strong>Precise Placement:</strong> The accuracy of our SMT pick and place machines can achieve a level of precision that surpasses any human pick and place handling.</li>
<li>🔥<strong>High Flexibility:</strong> <span style=”font-size: 16px;”>All SMT pick and place machines are easy to program for various PCB boards with different dimensions, production requirements, and specifications.</span></li>
<li>🧱<strong>Ease of Use:</strong> With the user-friendly aspect of our SMT pick and place machines, they can be incorporated into your production floor with the minimum training requirement.</li>
<li>🧩<strong>Low Maintenance:</strong> The cutting-edge technology of our SMT pick and place machines requires minimal maintenance, helping you reduce cost while increasing productivity.</li>
</ul>

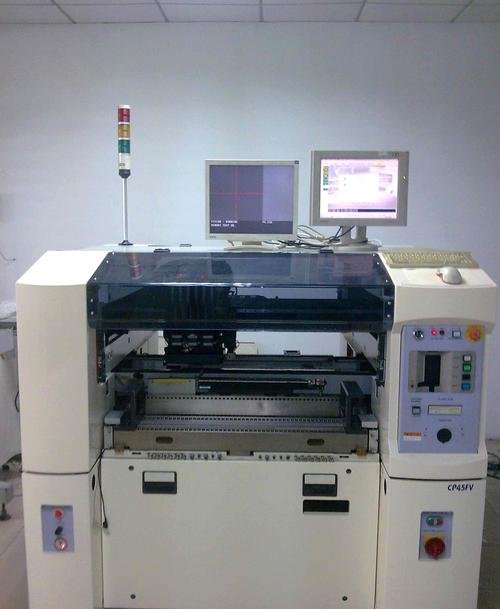

<h3>🔶 Samsung CP45FV Surface Mount Machine Parameters</h3>
<table class=”vita-spec-table”>
<tbody>
<tr>
<td colspan=”2″>Model</td>
<td>Samsung CP45F/CP45FV</td>
</tr>
<tr>
<td colspan=”2″>Mounting head</td>
<td>6 mounting heads</td>
</tr>
<tr>
<td colspan=”2″>Servo System</td>
<td>Servomotor driven X,<br>Y-axis – Z-axis travel drive system</td>
</tr>
<tr>
<td rowspan=”2″>Centering method</td>
<td>CP45F</td>
<td>Flight System</td>
</tr>
<tr>
<td>CP45FV</td>
<td>Full Vision(Fly Vision+Stage Vision)</td>
</tr>
<tr>
<td colspan=”2″>Substrate size</td>
<td>
Standard 50×30×0.38mm～460×400×4.2mm<br>
Option (CP45-L NEO)<br>
50×100×0.38mm～510×460×4.3mm
</td>
</tr>
<tr>
<td rowspan=”2″>Mounting Speed</td>
<td>CHIP</td>
<td>0.178 sec/slice IPC9580 14900CPH(1608)</td>
</tr>
<tr>
<td>QFP</td>
<td>0.75 sec/slice (flight centering)<br>1.6 sec/slice (fixed vision system)</td>
</tr>
<tr>
<td colspan=”2″>Number of feeders</td>
<td>tape feeder (104 optional)</td>
</tr>
<tr>
<td colspan=”2″>Transportation direction</td>
<td>Left-Right (Optional:Right-Left)</td>
</tr>
<tr>
<td rowspan=”2″>Positioning accuracy</td>
<td>CHIP</td>
<td>0603(0201)Chip ±0.08mm 1005Chip</td>
</tr>
<tr>
<td>QFP</td>
<td>±0.1mm QFP ±0.04mm</td>
</tr>
<tr>
<td colspan=”2″ rowspan=”7″>Component range</td>
<td>Flying Camera 1005(0402)～□22mm IC,<br>0603(0201)～□12mm (Option)</td>
</tr>
<tr>
<td>Standard fixed camera(FOV35) ～□32mm<br>IC(Lead Pitch:0.4mm)</td>
</tr>
<tr>
<td>Special Fixed Camera(FOV20) ～□17mm<br>IC(Lead Pitch:0.3mm)</td>
</tr>
<tr>
<td>Special Fixed Camera(FOV45) □42mm<br>IC(Lead Pitch:0.5mm)</td>
</tr>
<tr>
<td>*Lead Pitch(QFP) 0.3mm(with FOV20 Vision)</td>
</tr>
<tr>
<td>*Ball Pitch(BGA) 0.5mm(with FOV20 Vision)</td>
</tr>
<tr>
<td>Part*High 15mm(9mm:with flying vision)</td>
</tr>
<tr>
<td colspan=”2″>Power Requirements</td>
<td>AC220V～240V(50/60 Hz,3Phase)<br>RMS 2.6kVA(max:6kVA)</td>
</tr>
<tr>
<td colspan=”2″>Area/Size<br>(mm)(x*y*h)</td>
<td>1650×1540×1420</td>
</tr>
<tr>
<td colspan=”2″>Net Weight</td>
<td>Approx. 1380kg</td>
</tr>
<tr>
<td colspan=”2″>Feeder Type</td>
<td>
8mm,12mm,16mm,24mm,32mm,<br>
44mm,56mm Belt Fiducial, Tray,<br>
Vibration Fiducial, 20-motion<br>
Multi-Tray IC Cabinet
</td>
</tr>
<tr>
<td colspan=”2″>Air Consumption</td>
<td>5kg/cm³,160Nl/min</td>
</tr>
</tbody>
</table>
