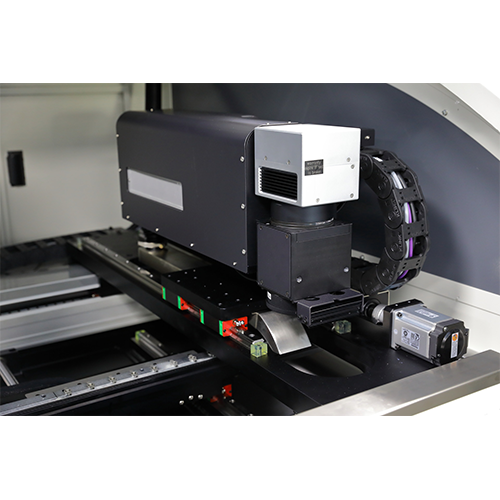

V510 Fully Automatic Laser Marking Machine

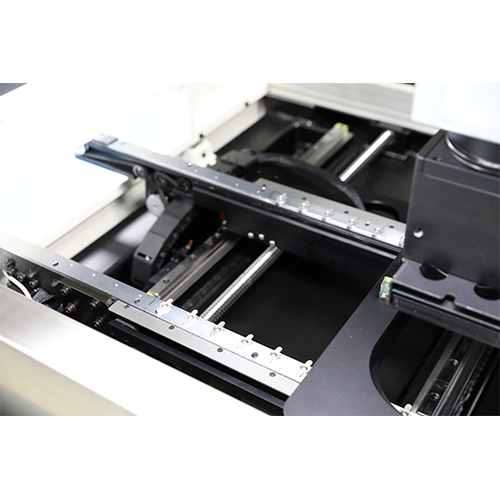

V510 Fully Automatic Laser Marking Machine - Image 2
V510 Fully Automatic Laser Marking Machine - Image 3

V510 Fully Automatic Laser Marking Machine

  • Zero-consumable, environmentally friendly, energy-saving, and non-damaging to copper

  • Tamper-proof and unalterable product traceability

  • Intelligent integration with MES/IMS/ERP and other management systems

  • Innovative error-proof and duplicate-code prevention system

  • Patented visual correction function to easily handle FPC expansion and shrinkage

  • Bed Mark recognition to skip defective boards during laser marking

  • Maximum PCB size: 510 × 460 mm

  • Machine dimensions: 1050 × 1470 × 1450 mm (W × L × H)

  • Optional laser sources: CO2, Fiber, Green, UV

Category:

Outstanding Products Make You Stand Out

Each SMT pick and place machine is guaranteed to boost your PCB assembly business thanks to the number of qualities listed below.

  • ⚡Precise Placement: The accuracy of our SMT pick and place machines can achieve a level of precision that surpasses any human pick and place handling.
  • 🔥High Flexibility: All SMT pick and place machines are easy to program for various PCB boards with different dimensions, production requirements, and specifications.
  • 🧱Ease of Use: With the user-friendly aspect of our SMT pick and place machines, they can be incorporated into your production floor with the minimum training requirement.
  • 🧩Low Maintenance: The cutting-edge technology of our SMT pick and place machines requires minimal maintenance, helping you reduce cost while increasing productivity.

🔶 V510 Fully Automatic PCB Laser Marking System Specifications

Item Technical Specifications
Laser Type UV Laser, Green Laser, Fiber Laser, CO₂ Laser (optional)
Marking Area 70mm × 70mm – 200mm × 200mm (depends on laser and lens type)
Marking Speed Up to 6000 mm/s (actual processing speed depends on laser type and power)
Marking Accuracy ±0.08 mm (can reach ±0.03 mm for special requirements)
PCB Size L510 mm × W460 mm; Thickness 0.5–6 mm (adjustable for special requirements)
PCB Top Surface Height <25 mm (adjustable for special requirements)
PCB Bottom Surface Height <25 mm (adjustable for special requirements)
Applicable Materials PCB hardboards with white, green, blue ink, etc.; copper, aluminum, etc.
Positioning System CCD + MARK positioning
Working Mode Laser XY scanning
1D Code Types Code 39, Code 25, Code 93, Code 128, EAN-13, EAN-8, ISBN, etc.
2D Code Types Datamatrix, QR Code, Micro QR Code, PDF417, Code 49, Code 16K, etc.
2D Code Size 1.5mm × 1.5mm – 10mm × 10mm (minimum size depends on laser type)
Character Types Supports TrueType, JSF, SHX, DMF fonts
Minimum Character Height 0.1–0.4 mm (depends on laser type)
Supported File Formats DXF, PLT, Excel, TXT
Positioning Function Supports auto-photography; 2-point, 3-point, 4-point positioning
Code Reading Function Automatically reads and saves 2D codes; records and alarms if unreadable
System Integration Customizable connection with ERP/MES/SAP; auto-fetches work order, batch number, material code, product specs, etc., and marks automatically
Conveyor Width Automatically adjusts according to PCB
Power Supply 220V/50Hz, Total Power ≈ 2500W
Air Pressure 0.5–0.6 MPa
Machine Dimensions 1050 W × 1450 L × 1500 H mm
Machine Weight 750 kg
