Yamaha YSi-V

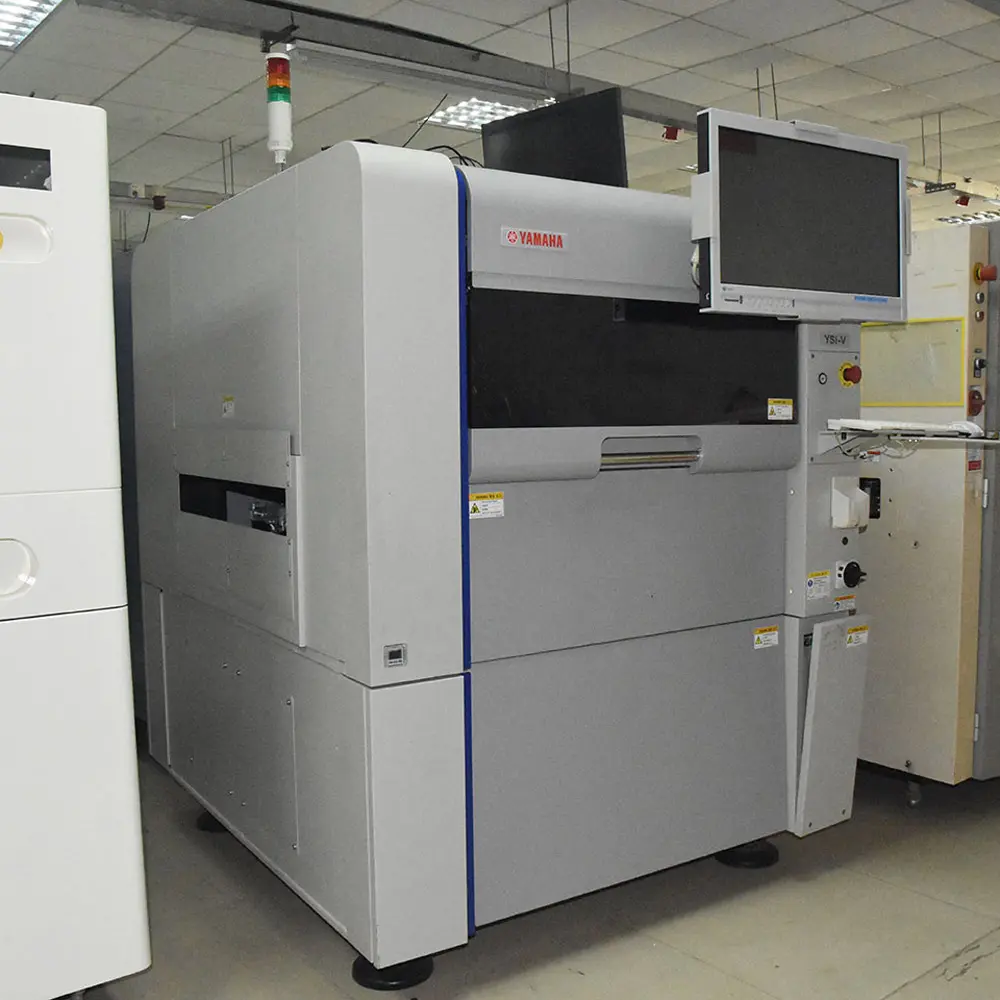

Yamaha YSi-V - Image 2
Yamaha YSi-V - Image 3

Yamaha YSi-V

Description

● The Yamaha YSi-V is a high-precision 3D AOI system designed for advanced SMT production environments that require accurate, repeatable, and automated PCB inspection.

● Equipped with Yamaha’s high-speed optical engine, multi-angle 2D/3D imaging, and powerful defect detection algorithms, the YSi-V delivers reliable inspection performance for fine-pitch components, solder joints, BGAs, QFNs, and complex PCB assemblies.

● With its combination of 2D, 3D, and laser profiling technologies, the YSi-V achieves superior measurement accuracy and comprehensive coverage, enabling detection of defects such as insufficient solder, lifted leads, tombstoning, bridging, polarity errors, and component shift. Its high-speed scanning capability supports inline SMT operations without causing production bottlenecks.

● Designed for smart factory integration, the YSi-V offers real-time SPC analysis, MES connectivity, traceability, and centralized inspection data management—allowing manufacturers to optimize processes, reduce rework, and enhance quality control.

● Suitable for automotive electronics, industrial systems, communication devices, consumer electronics, and medical electronics, the YSi-V is a trusted high-performance solution in production environments where quality cannot be compromised.

  • Brand: Yamaha
  • Model: YSi-V
Category:

Outstanding Products Make You Stand Out

Each SMT pick and place machine is guaranteed to boost your PCB assembly business thanks to the number of qualities listed below.

  • ⚡Precise Placement: The accuracy of our SMT pick and place machines can achieve a level of precision that surpasses any human pick and place handling.
  • 🔥High Flexibility: All SMT pick and place machines are easy to program for various PCB boards with different dimensions, production requirements, and specifications.
  • 🧱Ease of Use: With the user-friendly aspect of our SMT pick and place machines, they can be incorporated into your production floor with the minimum training requirement.
  • 🧩Low Maintenance: The cutting-edge technology of our SMT pick and place machines requires minimal maintenance, helping you reduce cost while increasing productivity.

🔶 Yamaha YSi-V – 3D AOI Machine Specifications

Model Yamaha YSi-V
Object Substrate L610xW560~L50xW50(single track model)
Support L750mm long baseboard (optional)
Camera Pixel 12 million pixels 5 million Pixel
Type 12M TypeHS2 12M TypeS 12M TypeDF 5M
Resolution 12um 7 um 12um 7um 12um 18um
Object to be checked Condition of components just after mounting,
cured soldering and components
Power supply specifications 3 phase 200/208/220/230/240/400/416V±10% 50/60Hz
Air Supply 0.4MPa or more, clean and dry condition
Dimensions (except protruding part) L1,252mmxW1,498mmxH1.550mm
Main body weight Approx. 1,300kg
